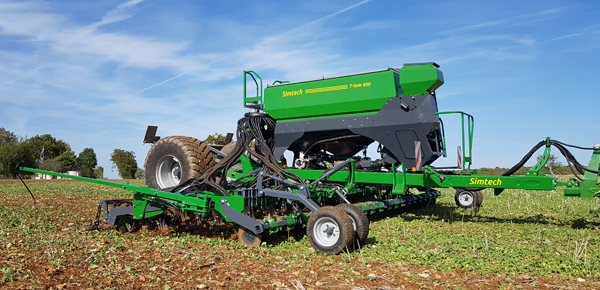

800APT Trailed drill

T-SEM Trailed Drills

Introducing the new dual/triple hopper T-Sem trailed range of T-Slot drills - available from Spring 2021

Over the past 12 months we have been developing an exciting new range of trailed drills. Final testing will be taking place this coming autumn and following the expected positive outcome, we will be taking orders for delivery in the first half of 2021.

Available for Seed only or Seed & Fertiliser the new T-Sem trailed range of T-Slot drills is a European built solution to direct drilling on large scale farms. Using the same proven Disc/Tine/Roller configuration as with all smaller T-Sem models, the new trailed drills add the ability to apply fertiliser with the seed or to just carry larger loads for longer working times before re-filling.

The addition of the third micro hopper adds even more versatility allowing materials such as slug pellets to be sown at the time of drilling.

Initially we will be building in either 6 or 8 metre widths, other sizes will be considered upon request.


Click here to see how the inverted T-Slot works

Click here to see how the ADS metering system works



Unfortunately you have JavaScript disabled.
Our videos & Tutorials section uses JavaScript to display our videos, please enable JavaScript to view these.

If you do not know how to enable JavaScript for your browser Please click here

600AC
Technical details

Transport width 3.00m
Sowing width 6.00m
No. of tines 32
Row spacing 18.75cms
Total weight 5550kgs
Hopper capacity 4100lts
Power requirement 180 hp

'Pneuflex' front roller

Pilot electronic metering

Chain Covering Harrow

Optional extras:

Hydraulic Bout Markers

Liquid or Granular fertilizer

Micro Hopper for Slug Pellets etc

800AC
Technical details

Transport width 3.00m
Sowing width 8.00m
No. of tines 40
Row spacing 20cms
Total weight 6500kgs
Hopper capacity 4100lts
Power requirement 200 hp

'Pneuflex' front roller

Pilot electronic metering

Chain Covering Harrow

Optional extras:

Hydraulic Bout Markers

Liquid or Granular fertilizer

Micro Hopper for Slug Pellets etc
